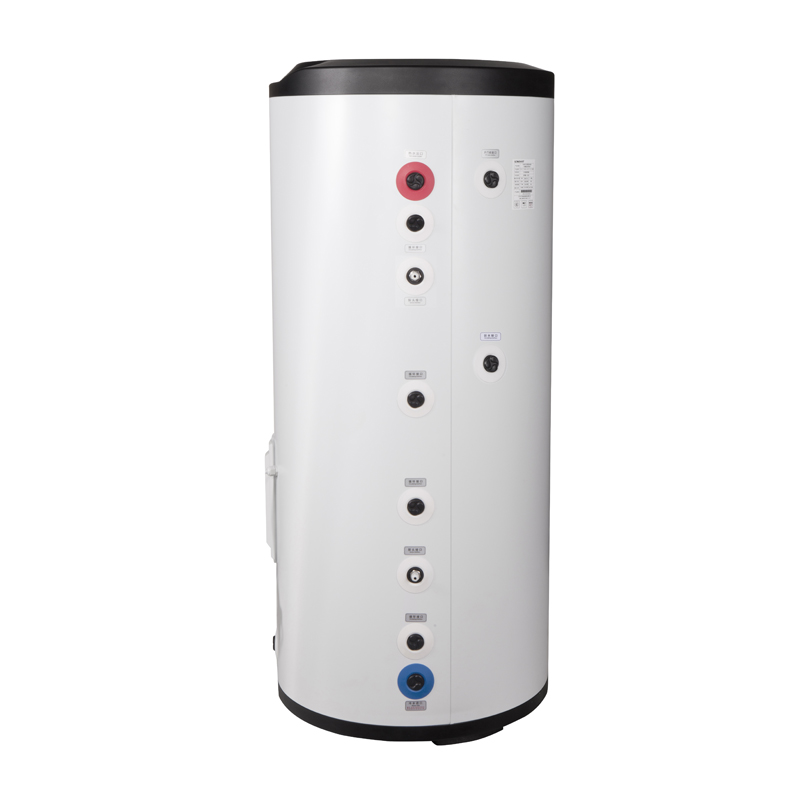

Product Description:

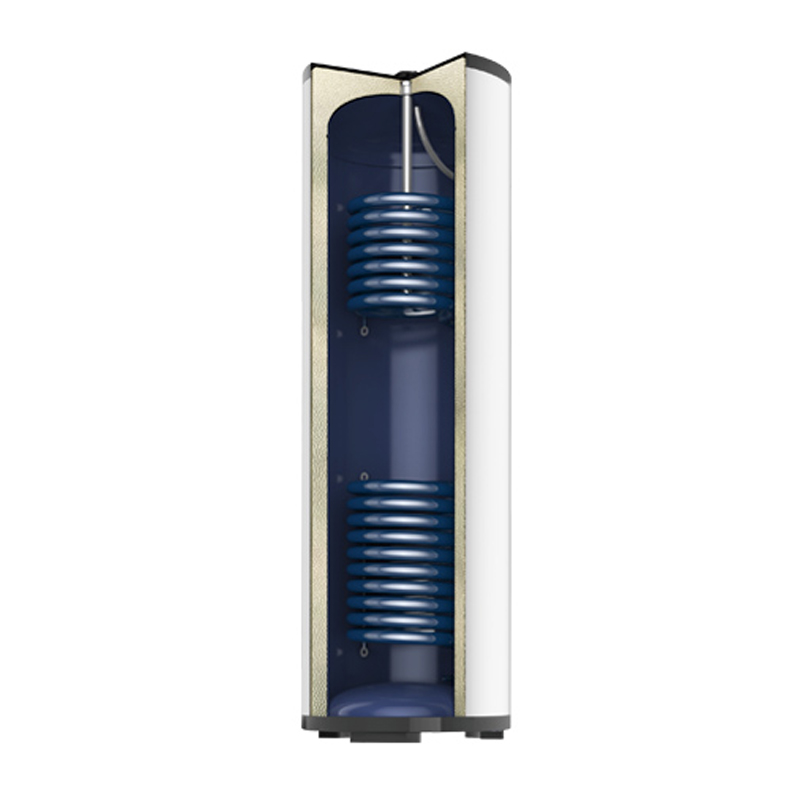

Dual Enamelled Coil Solar Tanks are designed for applications requiring a solar tank connected to multiple heating systems,such as solar hot water, solar space heating, and boiler heating (for backup)

GOMON enamel coated inner tank

GOMON enamel coated inner tank applies BAOSTEEL special enamel steel plate and America Ferro enamel powder. It is produced by advanced processes including flexible CNC rolling technology, America plasma automatic welding and Germany rolling enamel technology. It passes 280,000 times’ pressure impulse tests, with good performance of anti-pressure, anti-fatigue, anti-acid, anti-alkali, anti-corrosion and anti-hot water corrosion, which guarantees its service life.

Our Porcelain enamel tanks approved by CE、WATER MARK、ETL、WRAS、EN12977-3

Enamelled coil has bigger heat exchange area than copper coil, roughly 50% higher. Its heat exchange efficiency is better. It will not have air blocking inside. Its service life is longer due to good performance of anti-pressure, anti-fatigue, anti-acid, anti-alkali, anti-corrosion and anti-hot water corrosion.

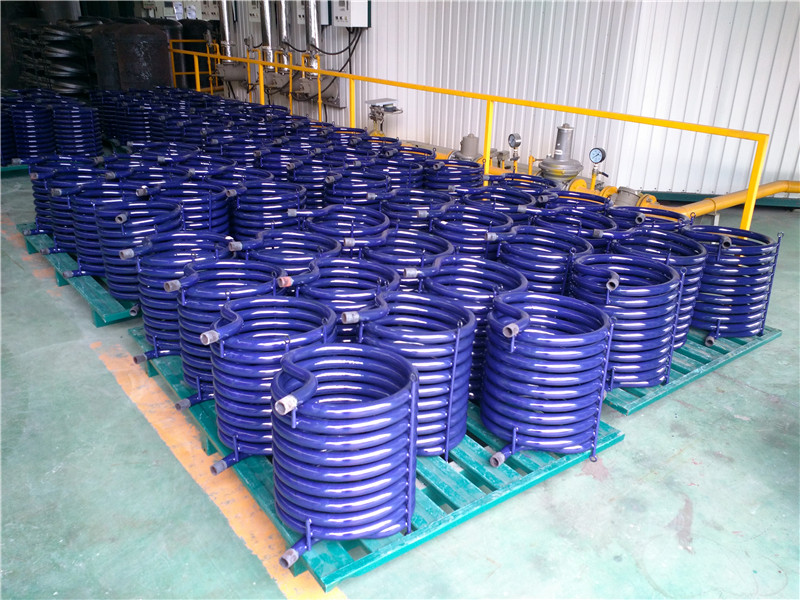

Enamelled coil
incoloy840-heating-element

Backer Brand Electric Heater With Over 60 years Of Experience

Screw-in thread type heating elements designed for plug-in & quick assebly with Thermowatt Stem thermostats

Wide range of solutions available

The 59T and 66T series controls are designed to meet the high electrical capacity requirements of electric water heaters. Both use a temperature sensitive bimetal disc to deliver snap-action to the contacts. The speed and force of contact separation provides long-dependable control life at high electrical loads.

  • Welded construction, used on all internal current-carrying components for greater electrical integrity.
  • The 59T mounting tabs snap into the customer’s bracket to mount the thermostat on the surface of the tank.
  • The trip free manual reset 66T limit control is available with non-adjustable calibrations from160°to 235°F (71° to 113°C).
  • The 59T has an adjustable range of approximately 60°F (33°K). The lowest adjustable limit is 90°F (32°C) and the highest adjustable limit is 200°F (93°C).
  • Controls are 100% operation checked.
emerson thermostat
pressure-and-temperature-relief-valve

Highly Sensitive With Water Mark Approved

Temperature and Pressure Relief Valves is suitable for Installing at the Pressurized solar water heater, gas heater, electric water heater, water heater of fuel, heat pump water heater, sensitive function heater, etc. various kinds of heaters (such as the boiler) and hot water containers. The valve will be opened at the set temperature (99℃) and pressure (7bar) to protect the water tank.

Proper water heater repair and maintenance requires you to drain your water heater from time to time. The Everbilt 3/4 in. Brass NPT x Male Hose Thread Water Heater Drain Valve offers a durable, high quality replacement that will provide years of service. This valve has brass construction for durability and resists rust and corrosion. The tamper proof valve will help guard against opening the drain valve accidentally.

  • Durable material resists rust and corrosion
  • Allows draining of water heater for prolonged life span
  • Tamper proof, no accidental discharge

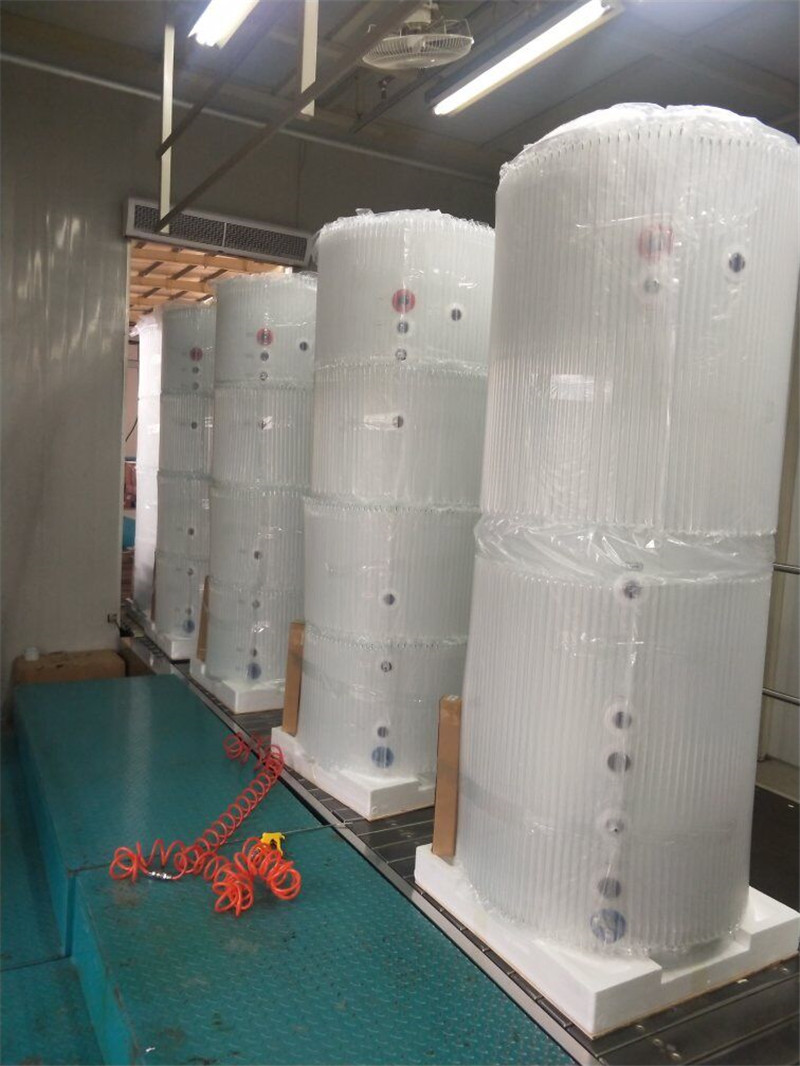

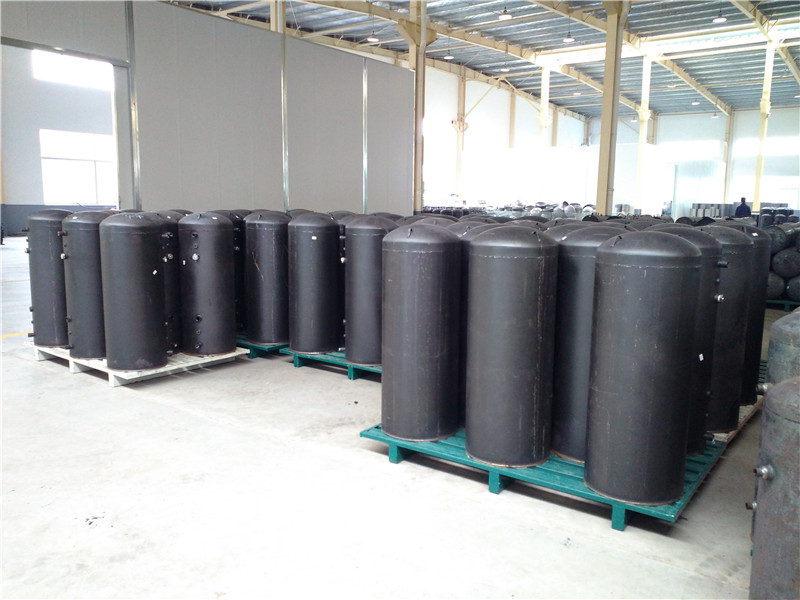

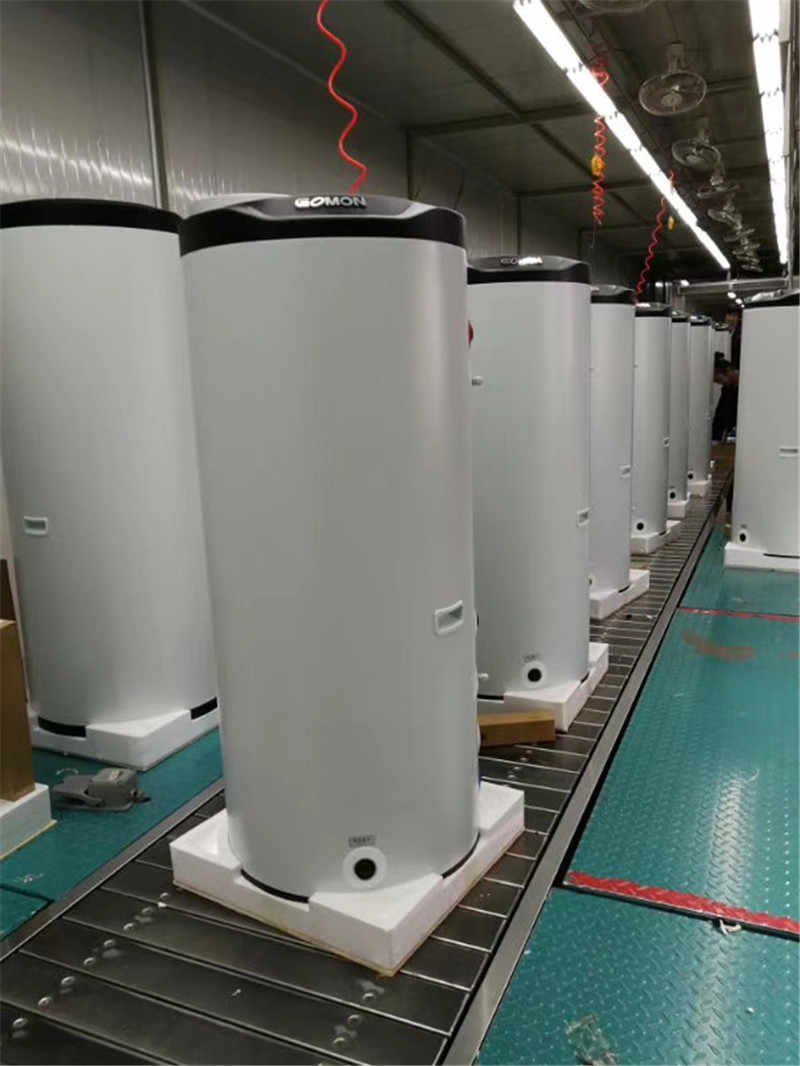

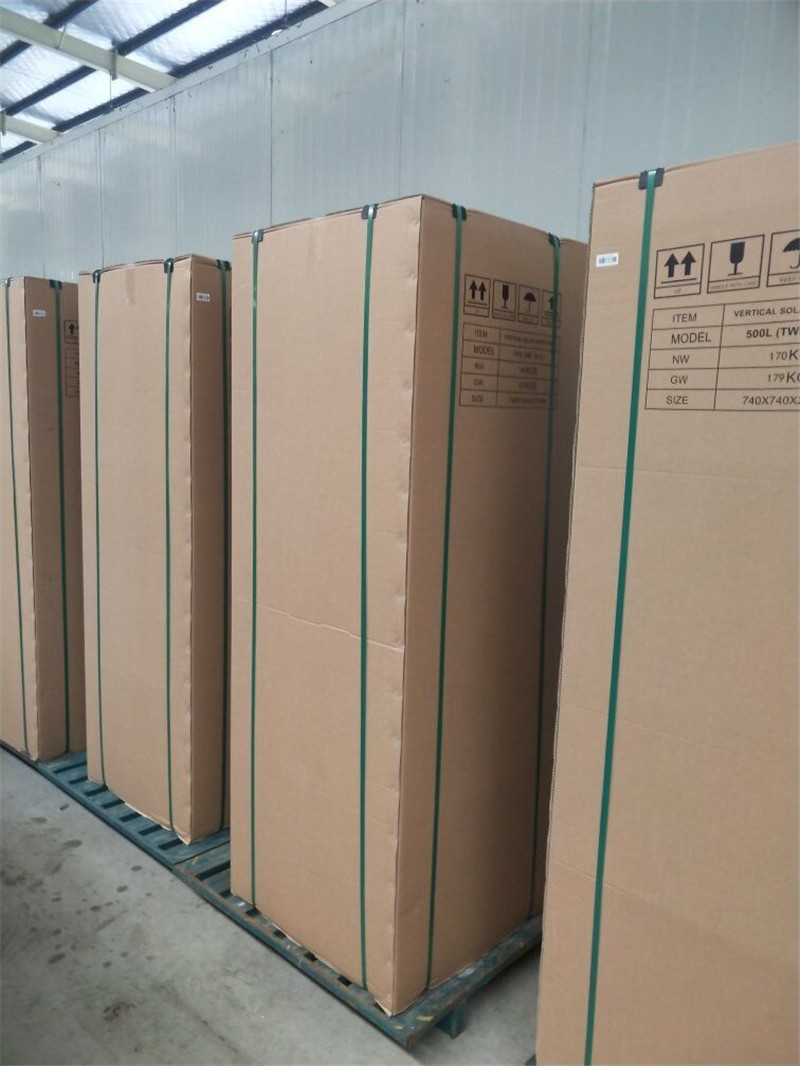

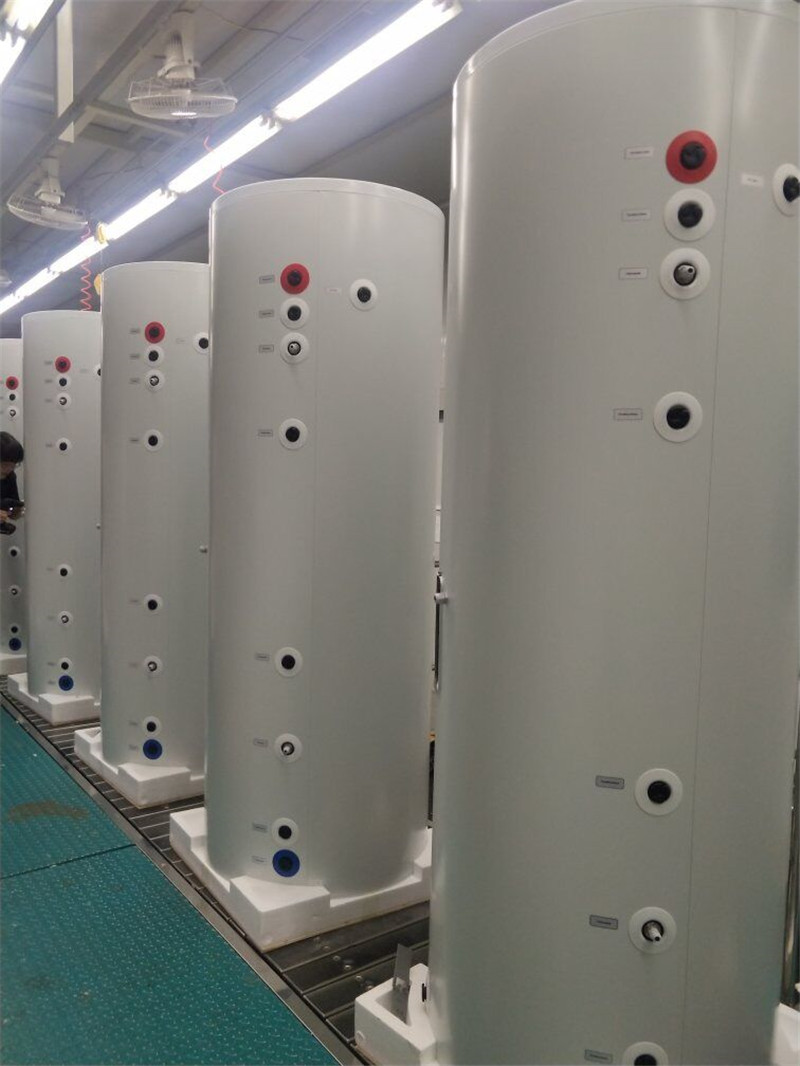

Real Images and Details:

Technical Parameters:

Product model150L200L300L400L500L
Net volume(L)146L195L292L390L490L
  Inner tank diameter(mm)Ф426Ф480Ф555Ф610Ф610
  Outer tank diameter(mm)Ф520Ф580Ф650Ф710Ф710
Total Height(mm)1468mm1534mm1676mm1812mm2160mm
Upper heat exchanger area(m2)0.67m20.76m21.0m21.15m21.15m2
Lower heat exchanger area(m2)1.0m21.1m21.4m21.72m21.72m2
Material of inner tank(mm)BTC340R 2.5BTC340R 2.5BTC340R 2.5BTC340R 2.5BTC340R 2.5
 Material of outer tank(mm)Color Steel 0.5Color Steel 0.5Color Steel 0.5Color Steel 0.5Color Steel 0.5
 Insulation thickness(mm)47mm50mm47mm50mm50mm

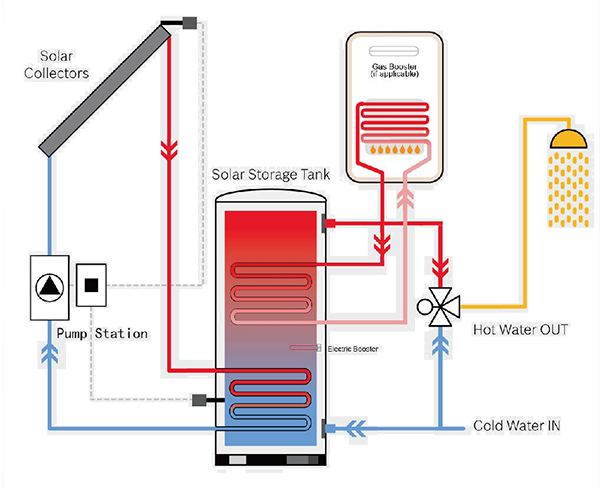

How It Works:

  • Heat exchange fluid from the bottom enamelled coil of tank is pumped through the roof top solar collectors, and is heated by the sun.
  • The stored water is heated when the fluid passes through the heat exchanger.
  • Supplementary heating is provided if insufficient heat is available from the sun(such as during cloudy or rainy weather or during winter months) either via electric booster or via gas booster.
Dual-Enamelled-Coil-Solar-Tank-Works
Dual-Enamelled-Coil-Solar-Tank-System-Installation-Diagram

System Installation Diagram
