Product Description:
No Coil Heat Pump Tank for split heat pump water heaters are designed for the storage and heating of good quality water in warm climate regions. This system is allowed to contact with the inside of the storage tank and heat pump,and so is not ideal for hard water conditions.The heat pump outdoor unit can be installed at both wall and floor and can be easily connected with an indoor wall hanging or floor standing storage tank by flare connections on refrigerant pipes. It offers easier integration in places where the space is at premium.

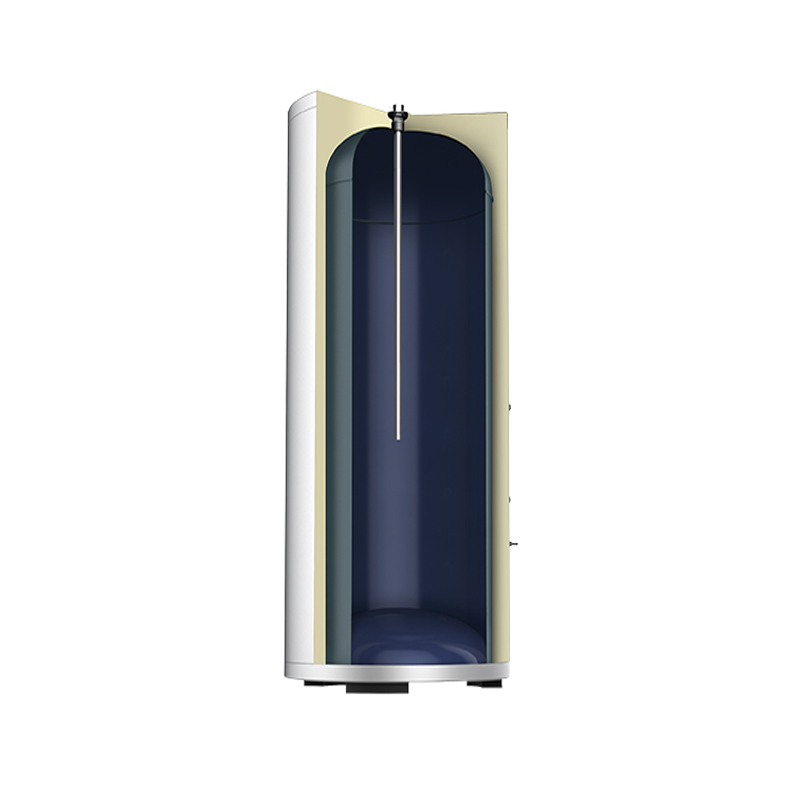

GOMON enamel coated inner tank applies BAOSTEEL special enamel steel plate and America Ferro enamel powder. It is produced by advanced processes including flexible CNC rolling technology, America plasma automatic welding and Germany rolling enamel technology. It passes 280,000 times’ pressure impulse tests, with good performance of anti-pressure, anti-fatigue, anti-acid, anti-alkali, anti-corrosion and anti-hot water corrosion, which guarantees its service life.
Our Porcelain enamel tanks approved by CE、WATER MARK、ETL、WRAS、EN12977-3
Highly Sensitive With Water Mark Approved

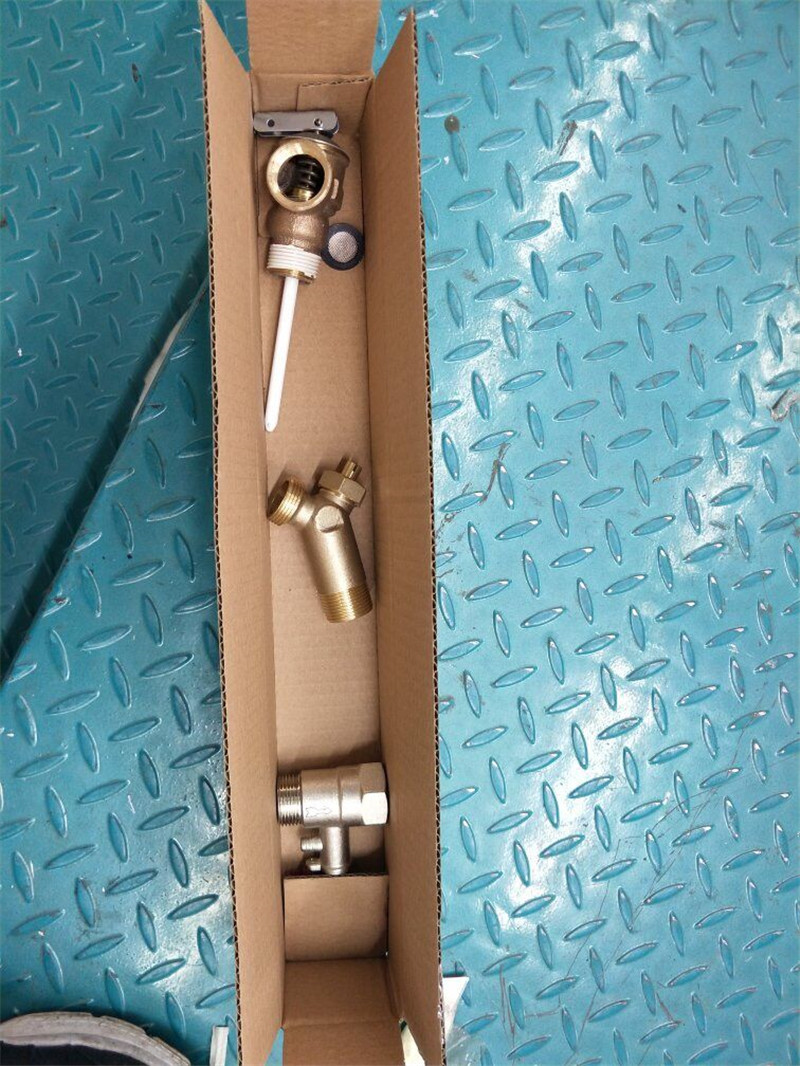

Temperature and Pressure Relief Valves is suitable for Installing at the Pressurized solar water heater, gas heater, electric water heater, water heater of fuel, heat pump water heater, sensitive function heater, etc. various kinds of heaters (such as the boiler) and hot water containers. The valve will be opened at the set temperature (99℃) and pressure (7bar) to protect the water tank.
Proper water heater repair and maintenance requires you to drain your water heater from time to time. The Everbilt 3/4 in. Brass NPT x Male Hose Thread Water Heater Drain Valve offers a durable, high quality replacement that will provide years of service. This valve has brass construction for durability and resists rust and corrosion. The tamper proof valve will help guard against opening the drain valve accidentally.
- Durable material resists rust and corrosion
- Allows draining of water heater for prolonged life span
- Tamper proof, no accidental discharge

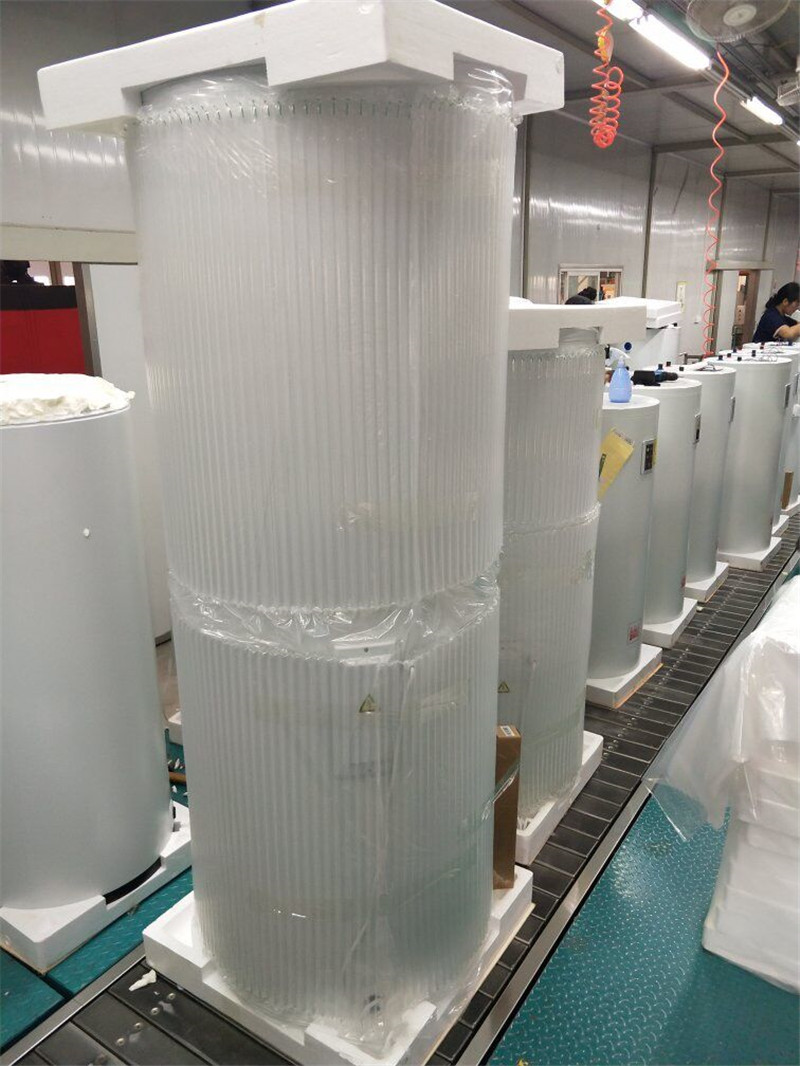

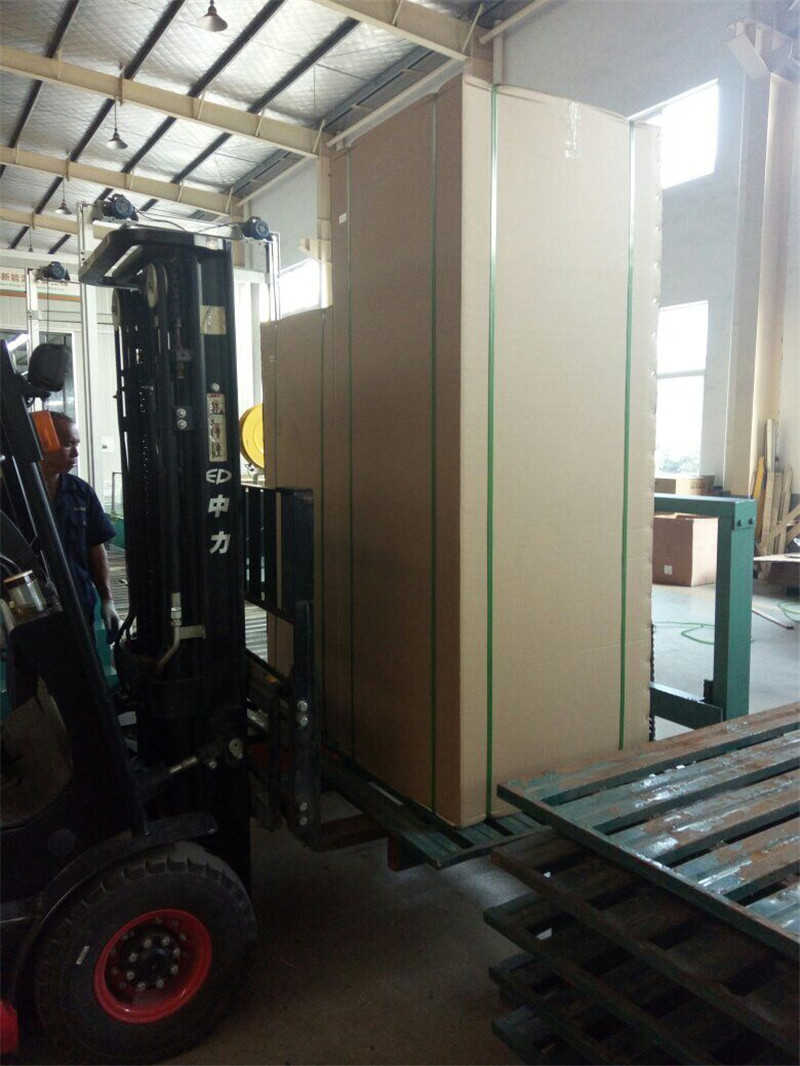

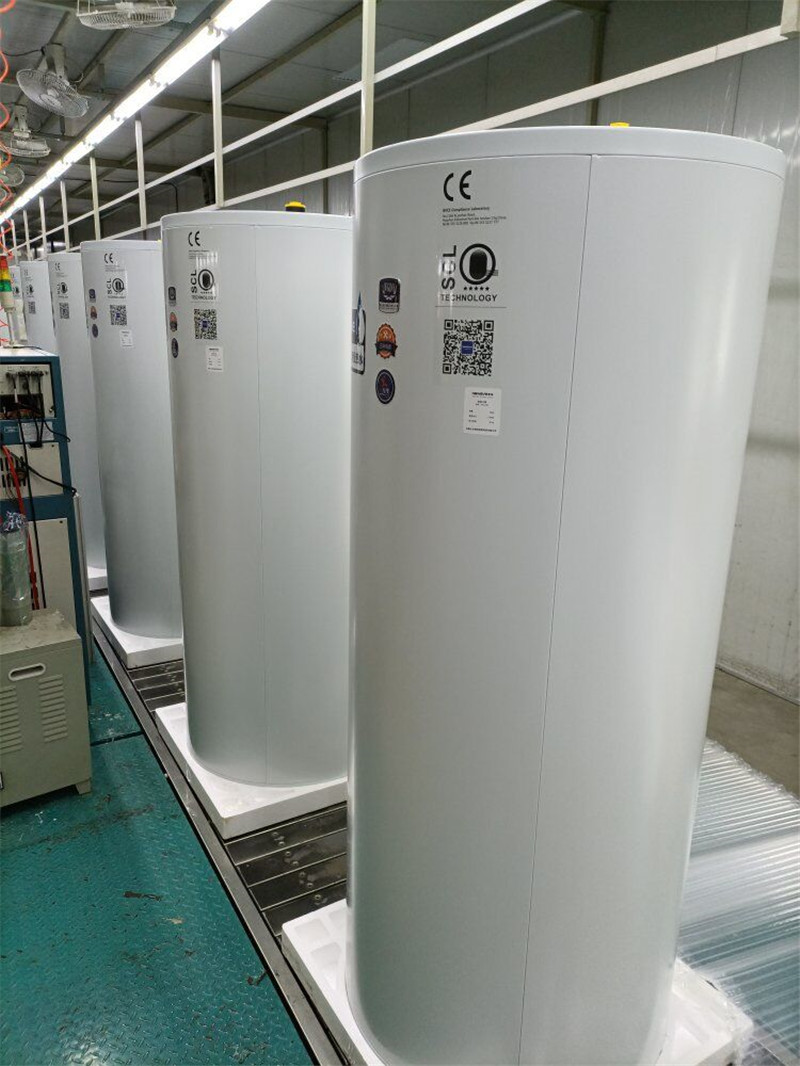

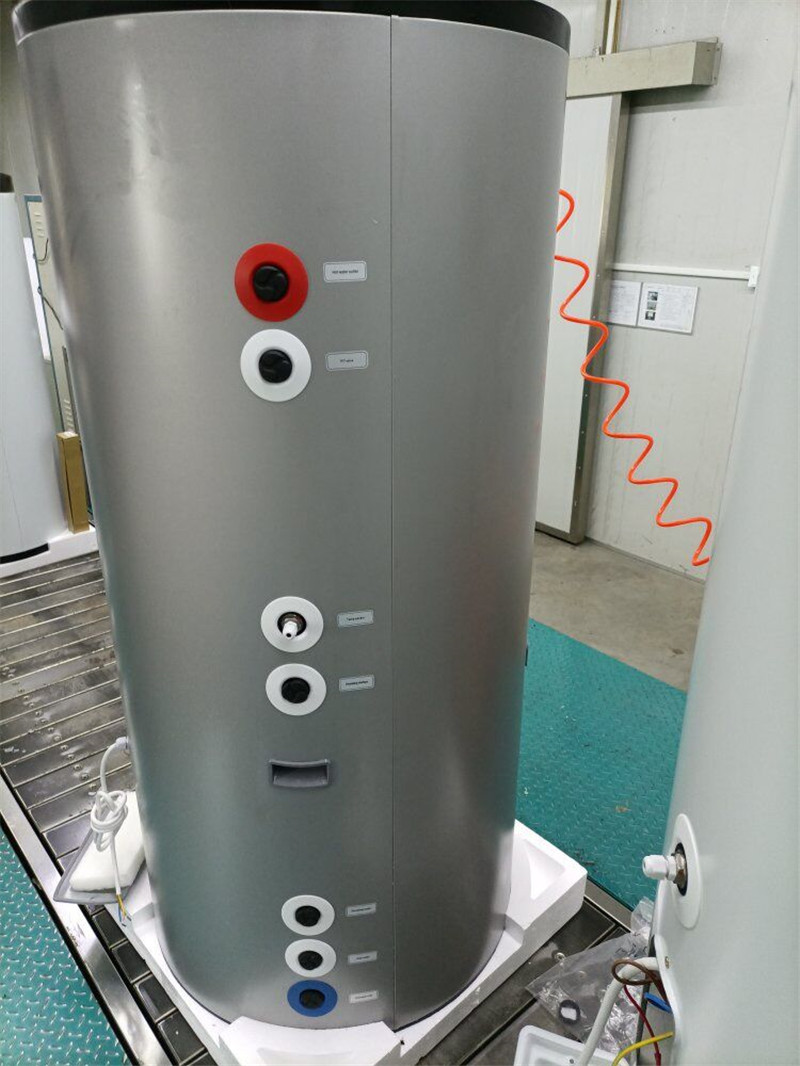

Real Images and Details:
Technical Parameters:
| Product model | 150L | 200L | 300L | 400L | 500L |
| Net volume(L) | 146L | 195L | 292L | 390L | 490L |
| Inner tank diameter(mm) | Φ370 | Φ426 | φ555 | Φ610 | φ610 |
| Outer tank diameter(mm) | Φ470 | φ520 | φ650 | Φ710 | φ710 |
| Rated Pressure(mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Total Height(mm) | 1530 | 1530 | 1427 | 1510 | 1860 |
| Material of inner tank(mm) | BTC340R 2.5 | BTC340R 2.5 | BTC340R 2.5 | BTC340R 2.5 | BTC340R 2.5 |
| Material of outer tank(mm) | Color Steel 0.5 | Color Steel 0.5 | Color Steel 0.5 | Color Steel 0.5 | Color Steel 0.5 |
| Insulation thickness(mm) | 50 | 47 | 47 | 50 | 50 |
| Weight(kg) | 56 | 66 | 82 | 115 | 138 |
How It Works:
- The fan inhales ambient air transferring its energy to the refrigerant agent in the evaporator thus changing from liquid to gas.
- The gas is further heated by compression.
- In the condenser the gas transfers its accumulated heat to the water tank. As it gets colder it transforms back to fluid. The pressure of the fluid is further reduced by the expansion valve.
